Micro Mirror



The main mirrors offered by ECOPTIK are laser mirrors, metal coated mirrors, partial mirrors and cavity mirrors for laser applications and others.

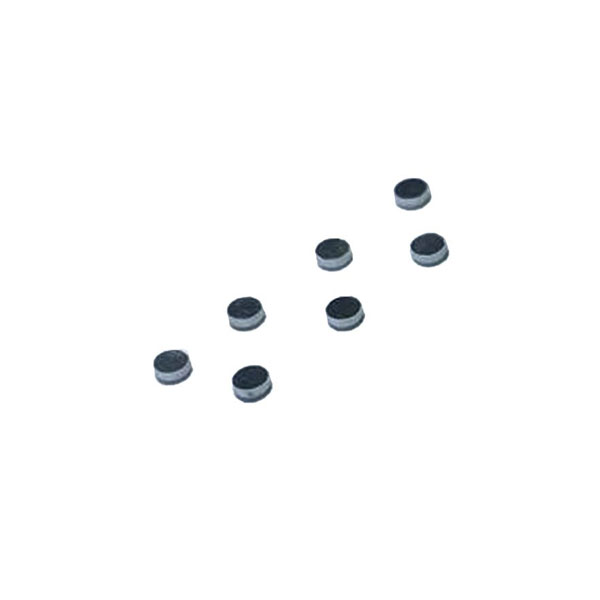

Description of Micro mirror

The main Mirrors offered by ECOPTIK are: High Reflectivity Mirrors, Metal Coated Mirrors, Laser Cavity Mirrors. We are in accordance with customer requirements of the band, incidence Angle, reflectivity and other design and processing.



Specifications of Micro mirror

Materials

BK7, Fused Silica or others

Dimension

0.5mm~5mm

Dimensional Tolerance

± 0.05mm

Flatness

λ/4~λ/10 @ 632.8nm

Surface Quality

20/10

Clear Aperture

>90% of Dimension

Coating

HR coating, Metal coating, or upon clients' request
